Course project · MYZ 309EAI in Mathematical Engineering · May 2026

Loss functions and sampling for imbalanced skin-lesion classification

A controlled comparison of cross-entropy, weighted CE, focal loss, class-balanced CE and re-sampling on HAM10000, read through metrics that a clinical task needs.

Deep learningClass imbalanceFocal lossPyTorchMedical imaging

Per-class recall of the five configurations.

Overview

On the HAM10000 dermoscopic dataset the majority class, melanocytic nevi, is 67 % of the data and dermatofibroma only 1.1 %. A model trained naively with cross-entropy reaches high accuracy by mostly predicting the majority class, and misses exactly the rare classes that matter clinically.

This study holds the CNN, optimiser, split and seed fixed and changes only the loss function or the sampling strategy. It then reports macro-F1, balanced accuracy and per-class recall instead of accuracy alone.

The configuration with the best accuracy (standard CE, 73.6 %) has the worst balanced accuracy and never detects dermatofibroma. Focal loss gives the best macro-F1; re-sampling buys the highest melanoma recall at the cost of over-predicting minority classes.

What I built

A 106 391-parameter CNN trained from scratch on a stratified 70/15/15 split.
Five configurations: CE, inverse-frequency weighted CE, focal loss (γ = 2), class-balanced CE (effective number of samples) and a balanced random sampler.
Confusion matrices, per-class recall heat maps, error analysis and an annotated over-fitting study; report, slides and two interactive HTML briefs.

Results

Configuration	Macro-F1	Balanced acc.	Accuracy	Recall mel	Recall df
Standard CE	0.381	0.352	0.736	0.29	0.00
Weighted CE	0.341	0.505	0.521	0.49	0.06
Focal loss (γ = 2)	0.443	0.538	0.622	0.62	0.39
Class-balanced CE	0.395	0.447	0.718	0.32	0.06
CE + balanced sampler	0.391	0.537	0.464	0.78	0.39

Held-out test set of 1 503 images.

Figures

**Fig. 1**Accuracy, balanced accuracy and macro-F1 side by side.

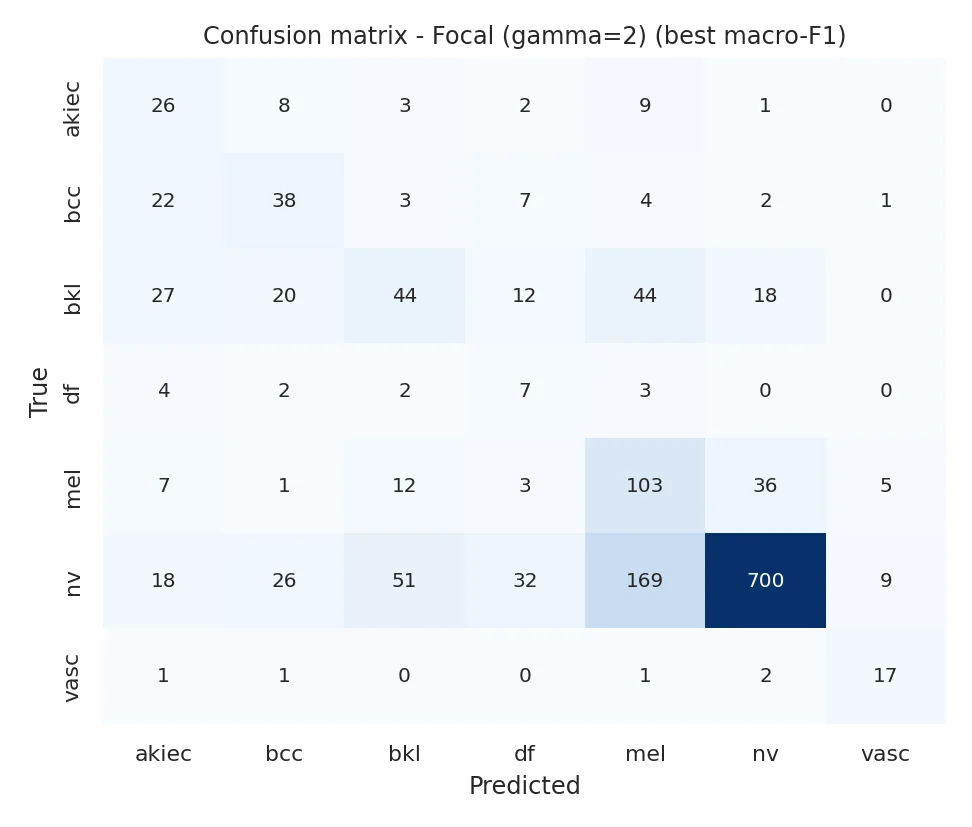

**Fig. 2**Confusion matrix of the best configuration (focal loss).

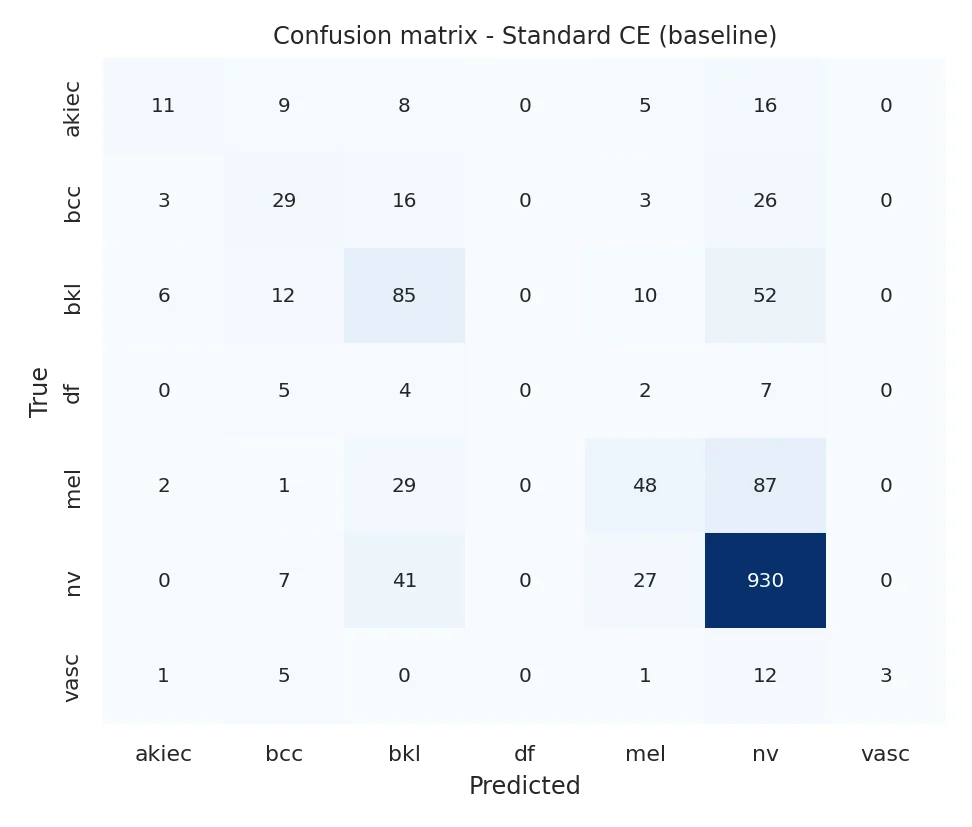

**Fig. 3**Confusion matrix of standard cross-entropy.

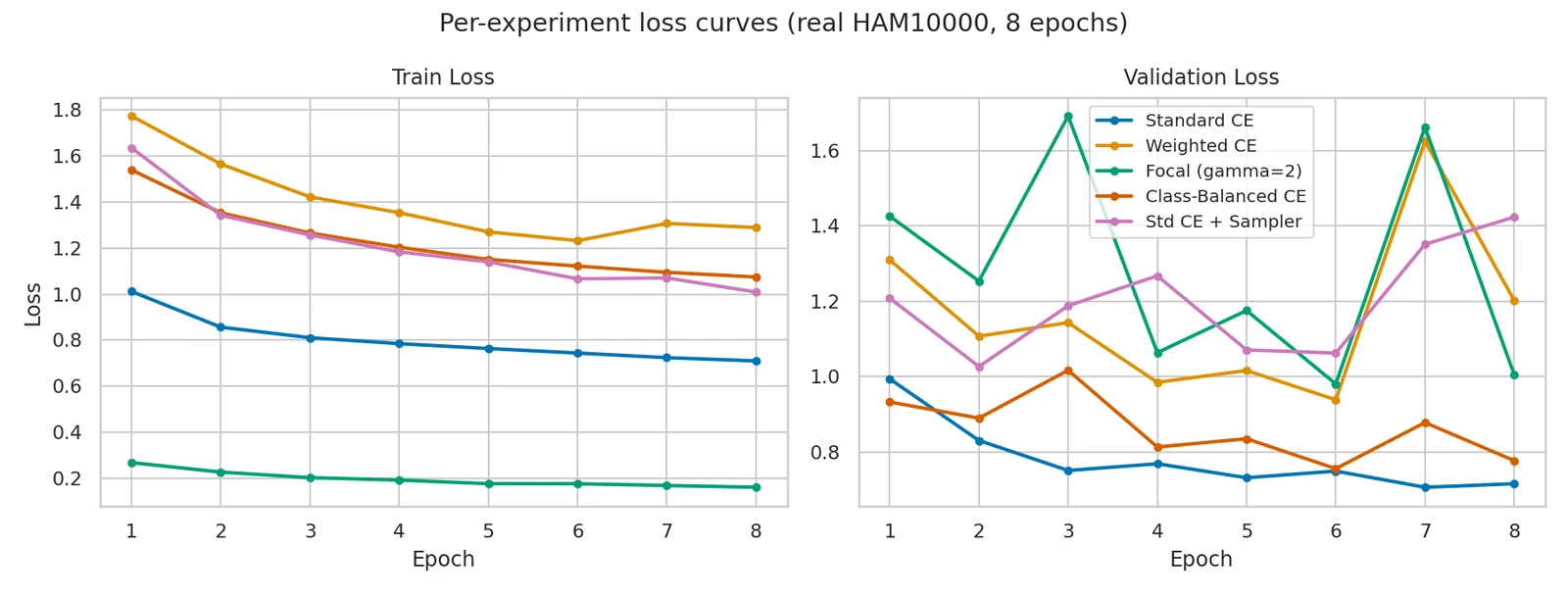

**Fig. 4**Training and validation loss of every configuration.

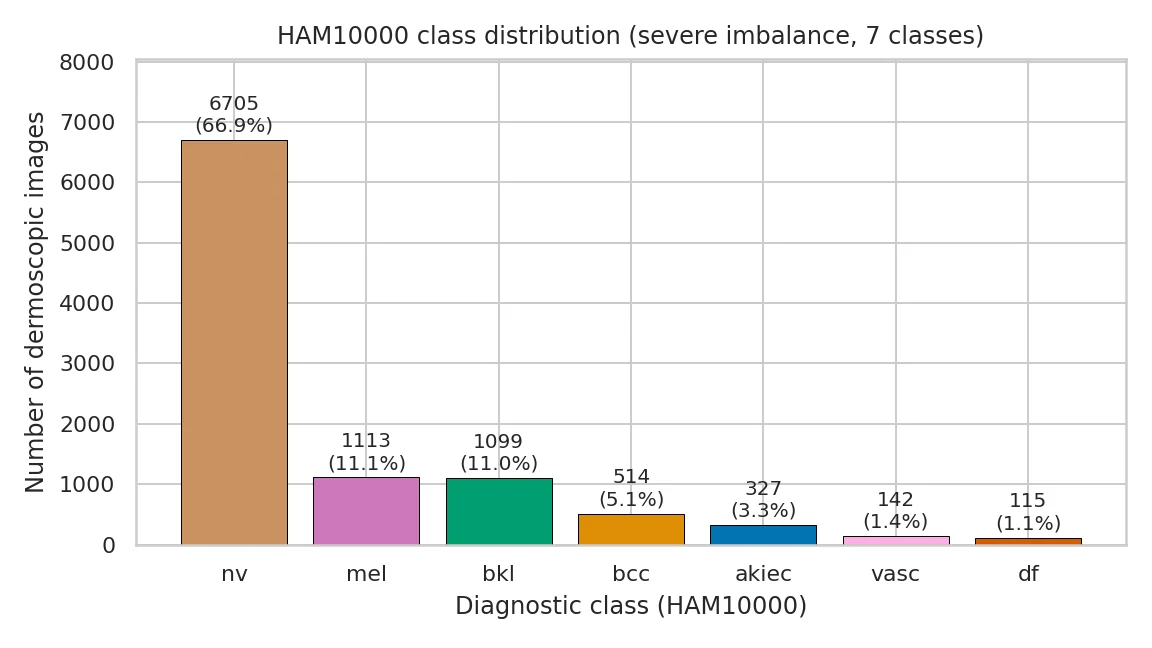

**Fig. 5**Class distribution of the training data.

Run it

$ pip install -r requirements.txt
$ jupyter notebook notebook/MYZ309E_HAM10000_Project.ipynb
$ python src/train_real.py "Focal (gamma=2)" 8
